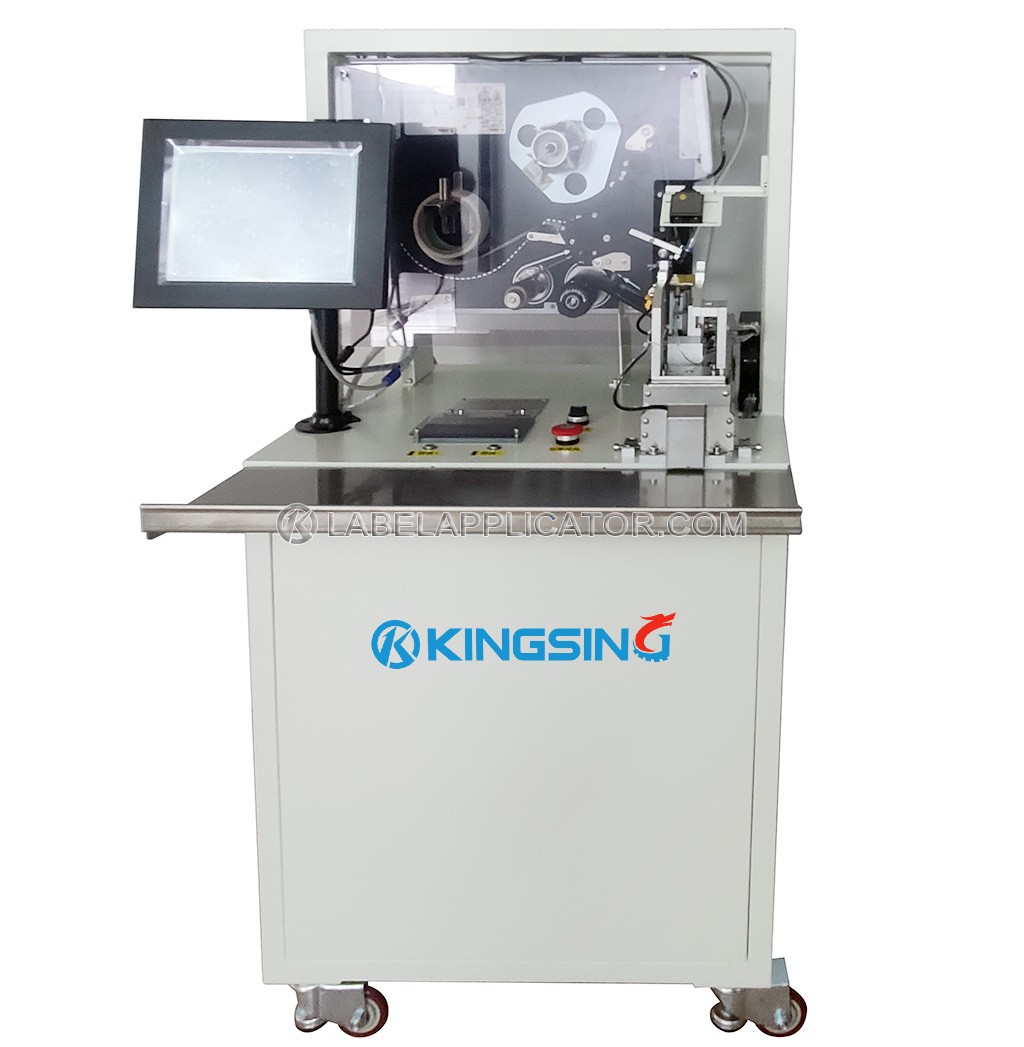

This is a real-time label printing and wire labeling machine, the currently printed label will be taken out for labeling immediately. Each label can print different content, it is especially usefull when each wire needs to be labelled with different content.
Although some of our other labeling machines can also be equipped with optional printing function, they cannot realize that the currently printed label will be used immediately. However, this machine will print a label and use it immeidately, it can ensure that the label attached to the wire is the one which is just printed.
This machine is equipped with an industrial computer, and the printed content can be edited through the PC. It supports printing various serial barcodes and QR codes, and has a built-in scanning error-proofing system.
There are 2 different labeling methods to choose from, half-fold labeling and circular labeling. A machine only supports one labeling method, so you can only choose one of them. We can also customize the machine according to requirements.
 |  |  |
| Model | KS-L153C | KS-L153F |
| Labeling Type | Circular | Flag |
| Label Width | 5~40mm | 5~90mm |
| Label Length | 10~100mm | 20~350mm |
| Availabel Wire Diameter | Φ1.5~15mm | Φ1~30mm |
| Air Pressure | 0.4~0.6Mpa | |
| Power Supply | 220V 50/60Hz | |
